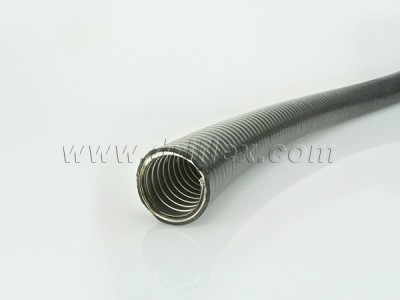

Model: LT-11
Description:
镀锌铁皮制成，表面PVC被覆。
超防水性，高抗拉性、防油性及耐延烧等特性。
耐温范围:-15度至＋105度。
3/8"至1-1/4"有莰入一连接地铜线，1-1/2"至4"须外加一条接地铜线，以符合国际电工法规第351节。
| Part No | Nominal Size ISO (mm) |
Nominal Size US (inches) |
I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) | Length (M/coil) |
|---|---|---|---|---|---|---|
| LT-10 | 16 | 3/8" | 12.29 - 12.80 | 17.50- 18.00 | 50.5 | 30 |
| LT-11 | 20 | 1/2" | 15.80 - 16.31 | 20.80 - 21.30 | 82.5 | 30 |
| LT-12 | 25 | 3/4" | 20.83 - 21.34 | 26.20 - 26.70 | 108.0 | 30 |
| LT-13 | 32 | 1" | 26.44 - 27.08 | 32.80 - 33.40 | 165.0 | 20 |
| LT-14 | 40 | 1-1/4" | 35.05 - 35.81 | 41.40 - 42.20 | 203.0 | 20 |
| LT-15 | 50 | 1-1/2" | 40.10 - 40.64 | 47.40 - 48.30 | 228.5 | 20 |
| LT-16 | 63 | 2" | 51.31 - 51.94 | 59.40 - 60.30 | 282.5 | 15 |
| LT-17 | 75 | 2-1/2" | 62.99 - 63.63 | 72.10 - 73.00 | 374.5 | 10 |
| LT-18 | 90 | 3" | 77.98 - 78.74 | 87.90 - 88.90 | 444.5 | 10 |
| LT-19 | 100 | 4" | 101.60 - 102.62 | 113.2 - 114.3 | 609.5 | 5 |
适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。
