单柱塞泵系列，流速准确，适用于要求严苛的HPLC应用

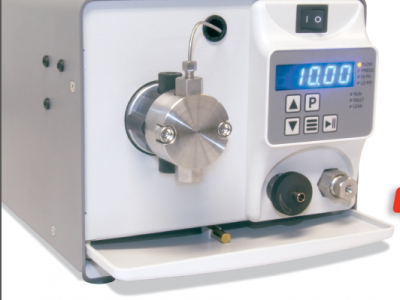

The reliable LS Class consists of single-headed, positive displacement piston pumps incorporating advanced cam designs for very low pulsation. With micro-stepping motor technology and a proven single-piston pump mechani*, the LS Class exceeds the perfor*nce of more expensive units at a fraction of the cost.
The pumps are ideal for a wide variety of HPLC applications (including Bio-compatible separations), Semi-Prep LC, metering & dispensing, and general aboratory use. Standard fluid path *terials are Stainless Steel and PEEK, n addition to optional Titanium. Other *ailable features include jacketed heads for temperature controlled processes. With 5 mL/min, 10 mL/min, 40 mL/min and 100 mL/min versions *ailable, and pressure capability up to 6,000 psi, these versatile pumps will meet the most de*nding applications.
Features include auto*tic pressure compensation, Pulse Dampener, integrated Prime-Purge Valve, interactive keypad control, and complete PC control and status through RS-232 and Micro U* 2.0 ports. The unique LS Class provides the highest perfor*nce/cost ratio in a compact package.
LS CLASS 高压输液恒流泵参数：
|
项目 |
参数 |
|
流速范围及zui大压力* |
0.000 - 5.000 mL/min (6,000 psi) (5,000 psi PEEK) |
|
0.00 - 10.00 mL/min (6,000 psi) (5,000 psi PEEK） |
|
|
0.0 - 40.00 mL/min (1,600 psi) |
|
|
0.0 - 100.0 mL/min (600 psi) |
|
|
脉动** |
≤2%, 1 mL/min 及 1,000 psi（5mL，10mL，40mL） 检测 |
|
≤4%, 50 mL/min 及 500 psi（100mL) 检测 |
|
|
压力准确度 |
&plu*n;2% 满量程 |
|
流量准确度 |
设置流速大于0.20 mL/min，20%异*水，1000psi（5mL，10mL）检测， 小于2% |
|
设置流速大于0.80 mL/min，20%异*水，1000psi（40mL）检测， 小于2% |
|
|
设置流速大于5 mL/min，20%异*水，500psi（100mL）检测， 小于4% |
|
|
流量精度 |
0.2% RSD |
|
液路材质 |
（看上列选项）包括红宝石，蓝宝石，UHMWPE, PTFE |
|
尺寸 |
6.5" H x 7" W x 16" D (高16.5 x 宽17.8 x 长40.6 cm) |
|
重量 |
15.3 lbs. (6.9 kg) |
|
电源 |
100-240 Vac (&plu*n; 10%), 50-60 Hz |
|
控制方式 |
RS-232, Micro U*, Run/Stop, *og (0-10V, 4-20*) |
备注：* 与所使用溶剂和压力有关
** 带均速器的结果
天津琛航科苑科技发展有限公司销售美国SSI全系列输液泵产品，如需咨询请致电我公司！
LS CLASS 高压输液恒流泵部分产品货号如下：
|
LS010SNT1B |
LS040SFP2A |
LS010SFT1C |
LS010SFP2B |
LS010PFT4A |
|
LS010JNN1B |
LS005SFP2B |
LS040SFN1A |
LS040SFN1C |
LS040SFP1A |
|
LS040SFT1A |
LS040SFT2C |
LS040JFN1A |
LS005SFP1A |
LS040PFP3A |
|
LS005SFP1C |
LS040PFT3A |
LS005SFT1A |
LS005SFX1B |
LS005SNP1A |
|
LS010PFP3A |
LS010PFT3A |
LS010SFT2A |
LS010SFP1C |
LS005SFT2C |
|
LS005SFT2A |
LS005SFT1C |
LS005SFP2C |
LS005SFP2A |
LS005SFP1B |
|
LS010SFP1A |
LS010SFP2A |
LS010SFT1A |
LS005PFT3A |
LS100SFT1C |
